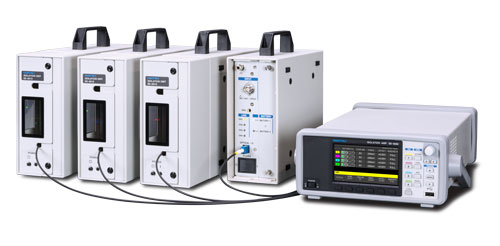

Isolation Probe

Performs waveform measurements with high resolutions and in safe manner under high voltage environment in systems that isolate Input/output terminals through optical insulation

Measuring Targets

l Contributes to the safety for the high voltage environment tests

l Increases measurement quality with differential probes

l Measures noise resistance very effectively

l Supports wide range of objects such as lightning surge and charging tests and etc.

l Measures Distant points (Switches, Transportation equipment and etc.)

l Analyzes failure factors when multiple abnormal operations happened at the distant places.(The Isolation Unit can be set at each place, up to 4 sets in total. )

Isolation Probe

Applications

Connection image

Isolation Probe System Specifications

[ISOLATION UNIT SE-6011 Specifications]

Item		Specification
Number of channels		1
Frequency bandwidth (-3dB)		30MHz( Input to Unit ～Output from AMP)
Input impedance		1MΩ‑//20pF
Input coupling		DC, AC, GND
Input range (Full scale)		±50mV,±100mV, ±200mV, ±500mV,±1V, ±2V, ±5V,±10V, ±20V, ±50V In DSO mode: ±40mV,±80mV,±200mV, ±400mV,±800mV, ±2V, ±4V, ±8V,±20V, ±40V
Input filter		OFF, 10MHz, 1MHz, 100kHz
Probe system		Auto detection, Manual setting
Max. Input voltage		400Vpeak
Offset voltage		±50mV to ±200mV : ±1V / ±500mV to ±2V : ±10V / ±5V to ±50V : ±100V
ADC		14bit 100MS/s
Automatic calibration		Available per channel
Input connector		BNC (the metal parts are covered by the insulation cases.)
LED display	Indicator	Power status: at the side of operating battery ON/OFF. Battery status: Change flashing speed by remaining power level.
Power supply	Battery	Li-ion battery(Max. 2pces)
Operation time (Under operating temperature)		Battery 1pce: 12 hours / Battery 2pces: 24 hours *1 pce equipped as standard
Output (Optical I/F connector)		Twin LC connector ×1
External dimensions		Approx. 95W x 205H x 315D (mm)

[ISOLATION AMP SE-6000 Specifications]

Item	Specification
Number of channels	4
DAC	14bit 100MS/s
Output voltage (Impedance)	±1V(50ohm)、±2V(1Mohm) In DSO mode: ±800mV(50ohm)、±1.6V(1Mohm)
Monitor display	4.3" Color LCD with back light : Brightness High/Low selectable
Auto range	Range, Offset auto detection
Input (Optical I/F Connector)	Twin LC connector ×4
Output	BNC×4
External interface	USB (for Save and Recall), LAN (for Remote recall)
External dimensions	Approx. 226W x 100H x 366D (mm)

[Options]

Optical fiber	3m, 10m, 50m(Heavy duty type), 200m (Made to order)
Battery	Li-ion battery(1pc. equipped as standard)
Battery charger	2-bay type

[Configuration]

Model Name		Type name
ISOLATION AMP		SE-6000
ISOLATION UNIT		SE-6011
Battery charger (2-bay type)		CH-5050A
Battery		NH-2054
Optical fiber cable	3m	SE-605
	10m	SE-606
	50m (Heavy duty type)	SE-607
	200m	Made to order
